C-Series Cerakote
C-Series Cerakote is high-heat coating rated to 1200°F and chemical-resistant.
Managed Gas Flow
Internal geometry reduces over-gassing and redirects gases to limit shooter exposure, flash, recoil, and sound.
Direct Thread Mount
The 1/2×28 direct-thread interface provides a secure, repeatable attachment without crush washers or shims.
PRECISION BORE ALIGNMENT
The bore is wire-EDM cut for concentricity, helping maintain alignment and minimize point-of-impact changes.
- Duty Use
Caliber
.223 Remington / 5.56 NATO
Mounting
1/2×28 direct thread
Construction
Hardened stainless steel, fully welded
Diameter
1.75″ (44.5 mm)
Length (w/o mount)
4.75 in. (121 mm)
Weight
Without Mount
13 oz. (369 g)

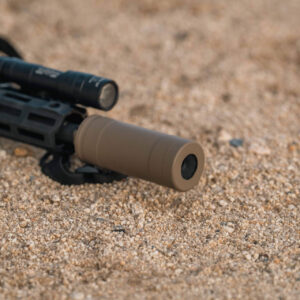

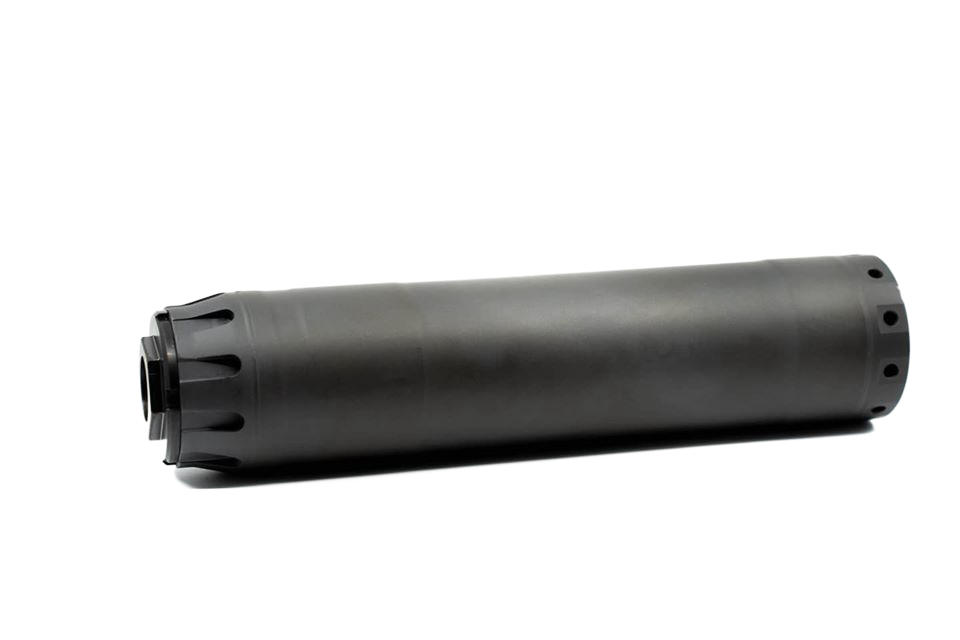

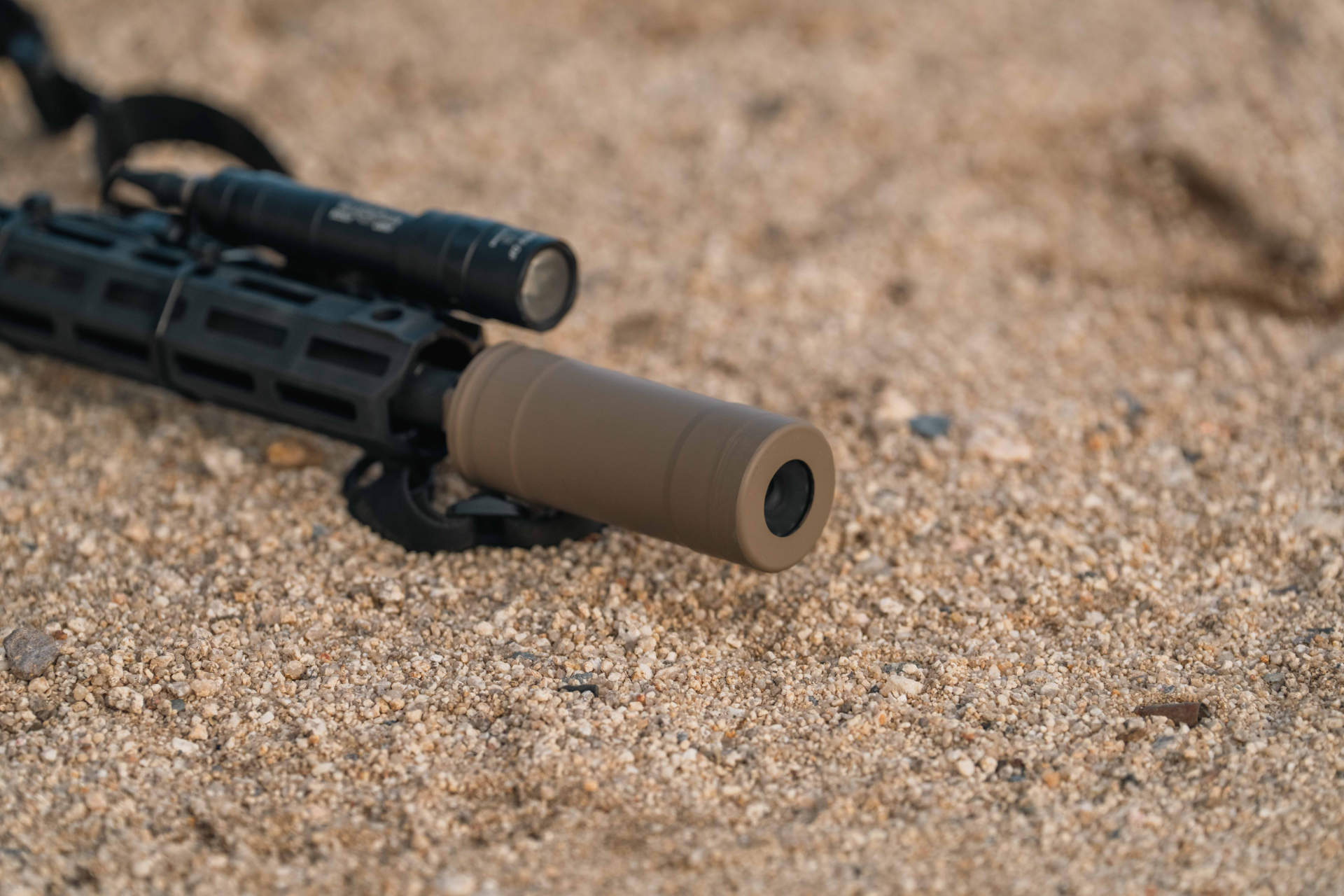

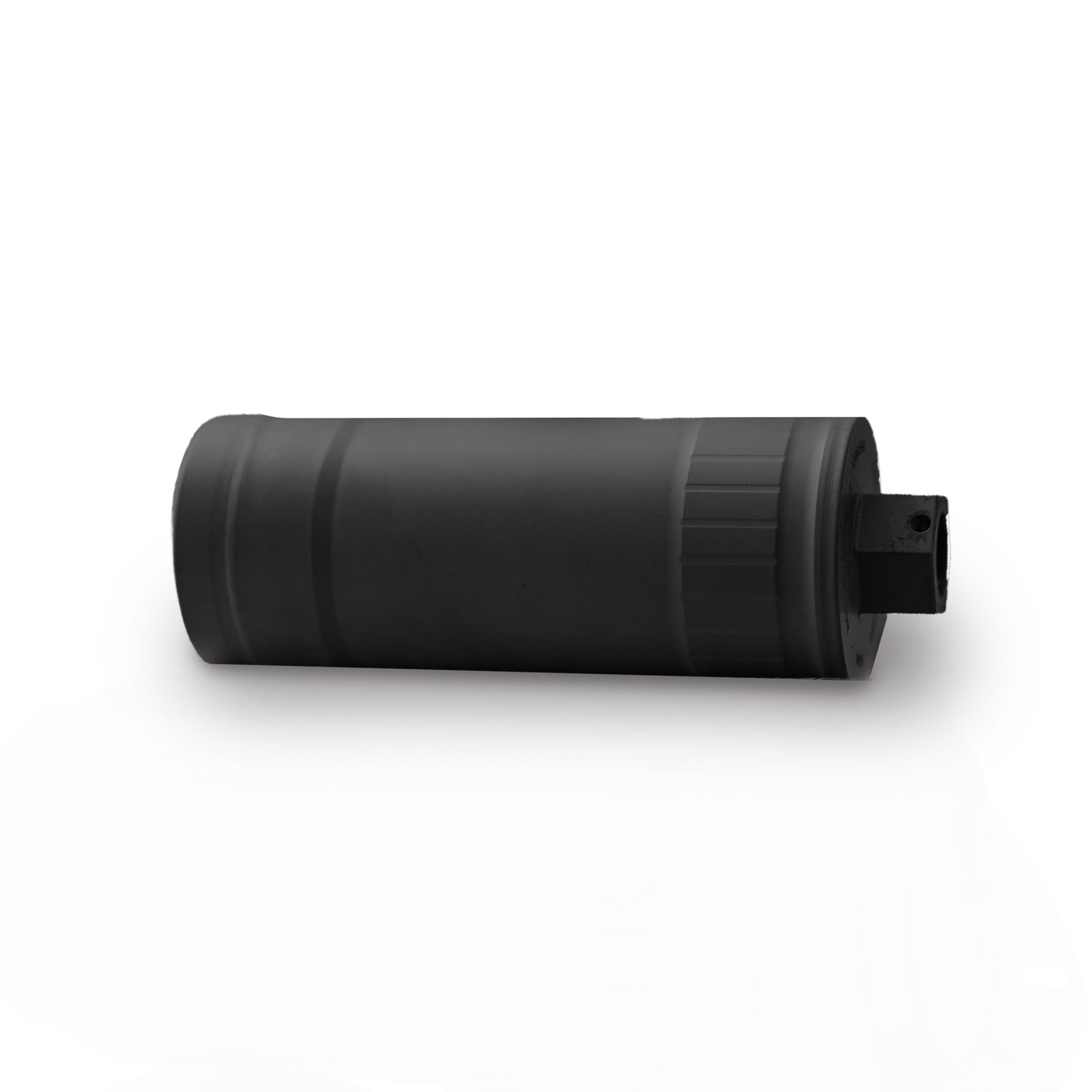

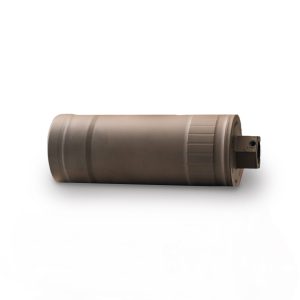

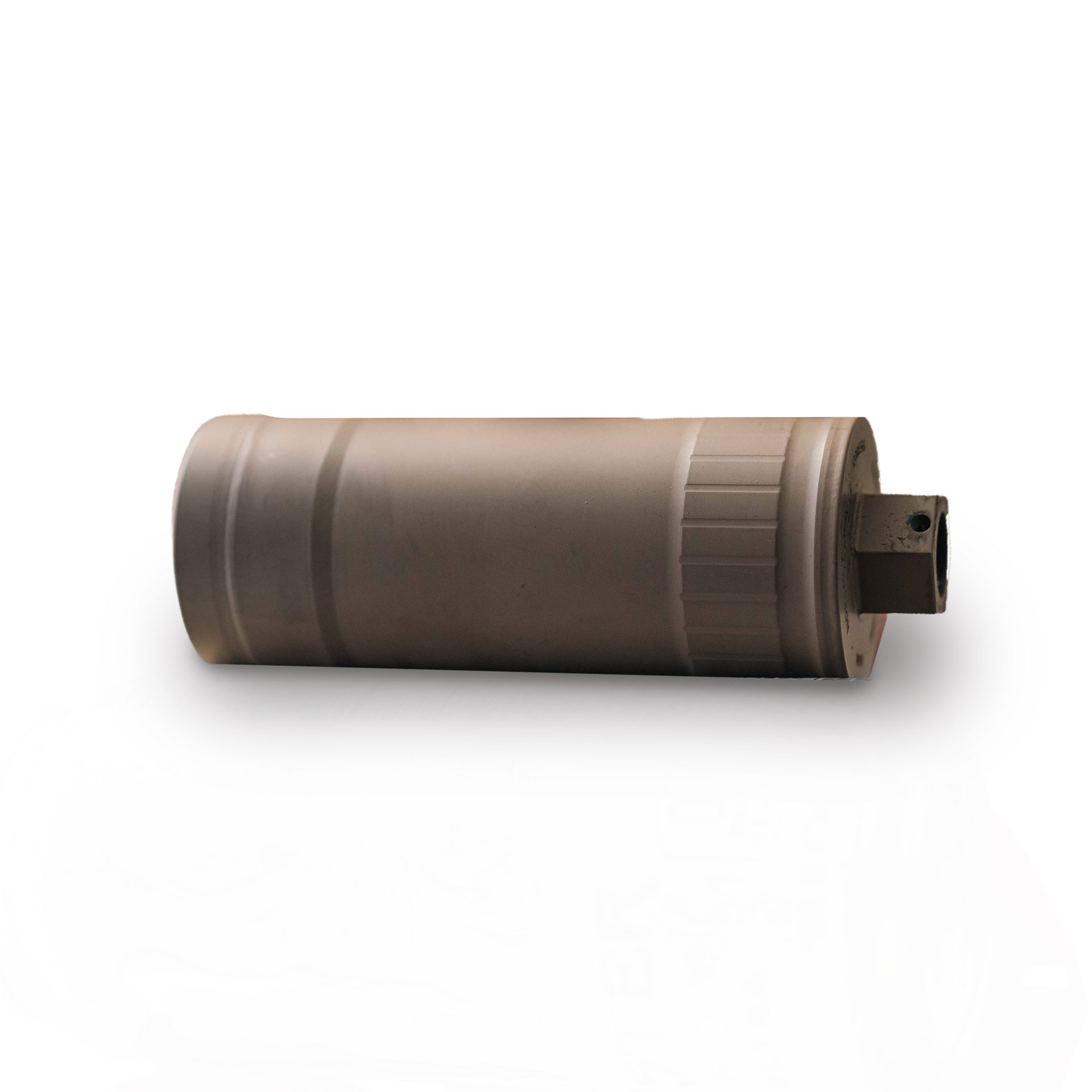

The CORE-556 was designed around the most widely used rifle platform in the United States. It carries forward proven design elements from the R556A1 and R556A2 in a simplified package that is easier to dedicate to a single host rifle.

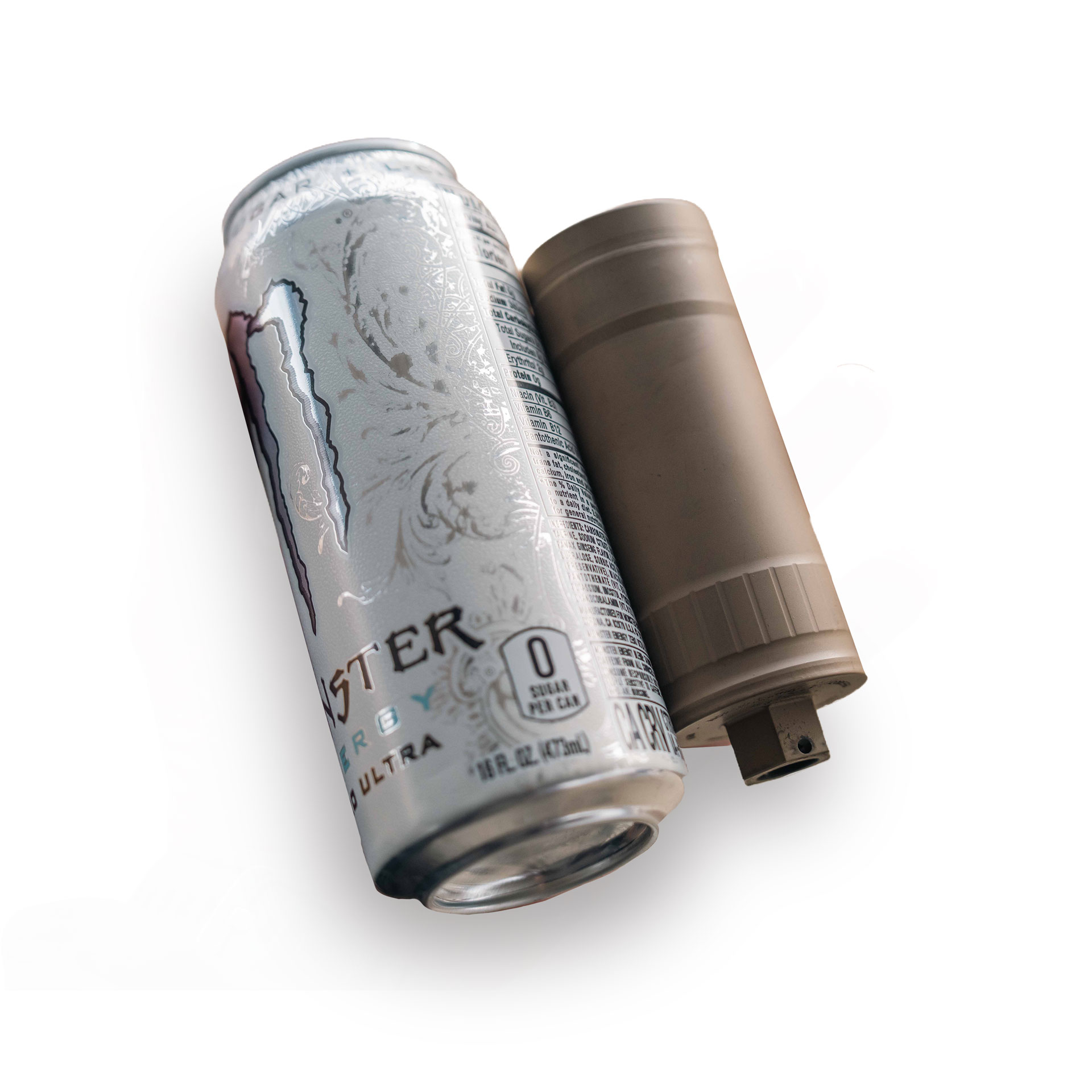

At 4.75 inches, the CORE-556 remains compact while delivering the durability and gas-management characteristics expected from KGM. The suppressor installs directly to standard 1/2×28 muzzle threads and can be pinned and welded to a 12.5-inch barrel to achieve a 16-inch overall barrel length. A gas-nitride treatment and C-Series Cerakote finish provide added surface hardness and heat resistance.

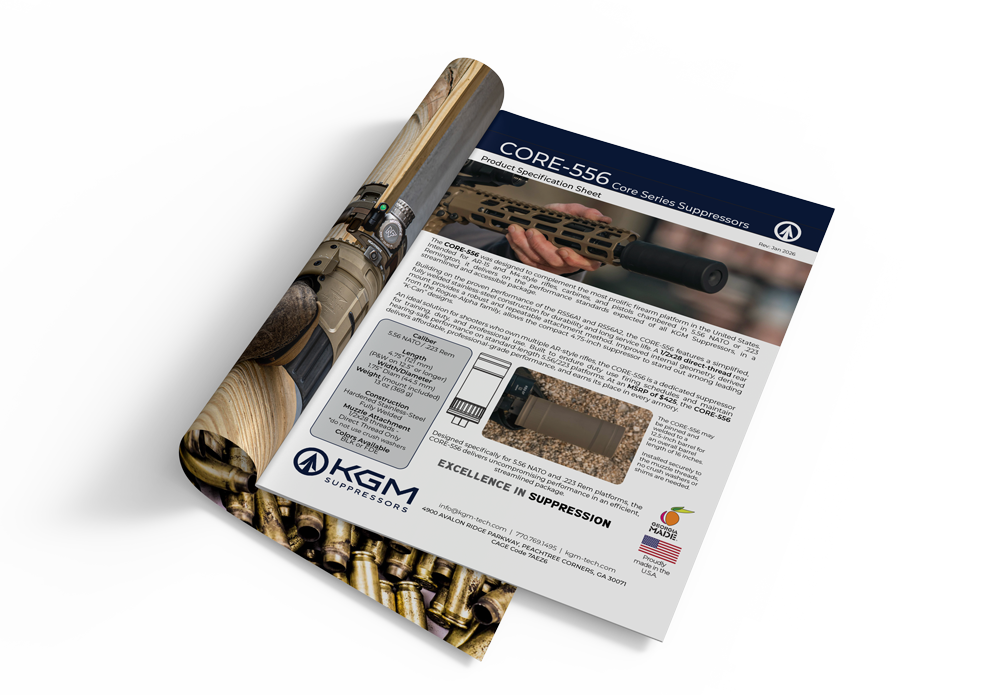

View or download the in-depth spec sheet.
See full details on the CORE-556.
